Agent 007¶

Our agent is operational, but if we're being honest, it's a bit... trigger-happy. It has a shiny new gadget—the Google Search tool—and it wants to use it for everything.

This isn't a bug; it's a feature of how LLMs work. When you give them tools, they assume you want them to use those tools. Our goal in this section is to give our agent a "license to think"—to teach it discretion, upgrade its internal mechanisms, and understand why this graph-based approach is so powerful.

1. Taming the Eager Agent with a System Prompt¶

The simplest way to guide an LLM's behavior is to give it clear instructions. In the world of chat models, the most powerful instruction is the system prompt. Think of it as a top-secret directive that governs all of the agent's subsequent behavior.

We can instruct our agent to be conversational and to use its tools only when necessary.

Let's modify our main loop to include this new directive.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

# ... (all previous code remains the same)

# The new system prompt
system_prompt = (
    "You are a helpful AI assistant. "
    "Respond to the user's questions directly and conversationally. "
    "Only use the google_search tool if you cannot answer the question yourself."
)

# Let's run it!
while True:
    user_input = input("User: ")
    if user_input.lower() in ["quit", "exit", "q"]:
        print("Agent 007, signing off.")
        break

    # We now include the system prompt with every user message
    messages = [
        ("system", system_prompt),
        ("user", user_input)
    ]

    # Stream the events from the graph
    for event in graph.stream({"messages": messages}):
        for key, value in event.items():
            if key == "chatbot" and not value["messages"][-1].tool_calls:
                print(f"Assistant: {value['messages'][-1].content}")

The Result? A Smarter Agent.¶

By adding that simple system message, we've fundamentally changed the agent's behavior.

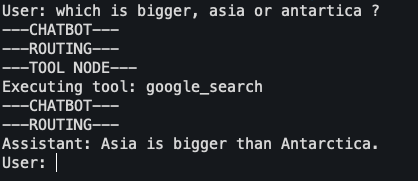

• Before: User: which is bigger, asia or antartica ? -> ---ROUTING--- -> ---TOOL NODE--- -> (Searches Google for " which is bigger, asia or antartica ?")

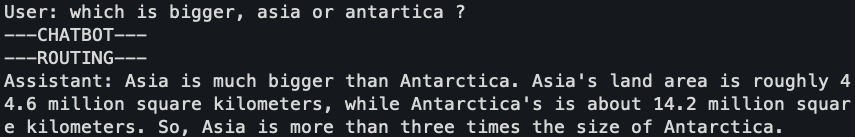

• After: User: which is bigger, asia or antartica ? -> ---ROUTING--- -> Assistant: Asia is much bigger....

Now, the agent uses its own vast knowledge for general conversation and only deploys its search gadget when faced with questions about recent events or specific data it wasn't trained on. It has learned discretion.

2. Using LangGraph's Built-in Gadgets¶

In our first mission, we built our own tool_node function and a custom route_tools function. They worked perfectly, but LangGraph provides pre-built, standardized gadgets that are often more robust and make our code more declarative.

Let's refactor our code to use LangGraph's pre-built ToolNode and tools_condition.

• ToolNode: Replaces our custom tool_node function. It's an optimized node that executes tools.
• tools_condition: Replaces our custom route_tools function. It's a standard conditional edge that checks for tool calls.

Let's create a new file, agent-007-smarter.py, for this upgraded version, which is now significantly cleaner.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58

import os
import json
from typing import Annotated, TypedDict

from dotenv import load_dotenv
from langchain_core.tools import Tool
from langchain_google_community import GoogleSearchAPIWrapper
from langchain_google_genai import ChatGoogleGenerativeAI
from langgraph.graph import StateGraph, END, START
from langgraph.graph.message import add_messages
# Import the pre-built components
from langgraph.prebuilt import ToolNode, tools_condition

# --- Standard Setup (Same as before) ---
load_dotenv()

class State(TypedDict):
    messages: Annotated[list, add_messages]

llm = ChatGoogleGenerativeAI(model="gemini-1.5-flash")
search = GoogleSearchAPIWrapper()
google_search_tool = Tool(
    name="google_search",
    description="Search Google for recent results.",
    func=search.run,
)
tools = [google_search_tool]
llm_with_tools = llm.bind_tools(tools)

# --- Node Definitions (Now using pre-built) ---

def chatbot(state: State):
    print("---CHATBOT---")
    return {"messages": [llm_with_tools.invoke(state["messages"])]}

# Use the pre-built ToolNode
tool_node = ToolNode(tools)

# --- Graph Assembly (Notice the clean-up!) ---

graph_builder = StateGraph(State)
graph_builder.add_node("chatbot", chatbot)
graph_builder.add_node("tools", tool_node) # Register the pre-built tool node

graph_builder.add_edge(START, "chatbot")

# Our routing function is gone! We use the pre-built tools_condition.
graph_builder.add_conditional_edges(
    "chatbot",
    tools_condition, # Use the pre-built conditional router
    {"tools": "tools", END: END},
)
graph_builder.add_edge("tools", "chatbot")

graph = graph_builder.compile()

# --- Main Loop (Same as before, with system prompt) ---
# ... (The main loop is identical to the one above)

3. Demystifying the "Magic": What bind_tools Really Does¶

It’s easy to look at a method like .bind_tools() and think there’s some hidden, complex magic happening. In reality, it's a powerful convenience that handles two tedious tasks for you: prompt formatting and response parsing.

It's not magic; it's an incredibly useful translation layer.

On the Way In: Prompt Formatting¶

Without .bind_tools(), you would have to manually explain to the LLM—in exacting detail within the prompt—what tools are available and how to call them.

1
2
3
4
5
6

{
  "tool_name": "google_search",
  "tool_input": {
    "query": "the user's search query here"
  }
}

The .bind_tools(tools) method does this for you. It takes your nice Python Tool objects and automatically generates the precise, model-specific instructions, appending them to the prompt in the format the LLM expects.

On the Way Out: Response Parsing¶

When the LLM decides to use a tool, it doesn't execute a Python function. It just returns text. That text might be a JSON object, like {"tool_name": "google_search", ...}.

Without the framework, you'd have to: 1. Receive the raw text response from the LLM. 2. Check if the text looks like a tool call. 3. Use json.loads() to parse the string into a dictionary. 4. Handle potential JSONDecodeErrors if the LLM messes up the format. 5. Manually call the correct Python function (search.run) with the arguments.

The framework handles all of this. It inspects the LLM's response, parses it cleanly and safely, and presents it to you as a beautiful, easy-to-use Python object: AIMessage(..., tool_calls=[...]). This lets you work with high-level objects instead of messy strings.

Think of it as an expert adapter. It translates your clean Python objects into the low-level language the LLM understands, and then translates the LLM's raw response back into clean Python objects for you to use.

4. Why Bother with a Framework?¶

At this point, if one still might wonder, "This is cool, but couldn't I just write this with a few if/else statements?" For this simple agent, yes. But the real power of LangGraph becomes apparent as soon as you want to add more capabilities.

Building an agent is like building a car. You could machine every bolt and weld the frame yourself. Or, you could start with a high-performance chassis, engine, and transmission, and focus your energy on designing the body, tuning the suspension, and creating a luxury interior.

LangGraph is the high-performance chassis for your AI agent.

5. Next on the Docket¶

We've built a solid, intelligent agent. But things are about to get a lot more interesting. In the upcoming sections, we'll explore:

• Complex State Management: What if our agent needs to remember more than just the message history?
• Human-in-the-Loop: How can we pause the agent and ask for human confirmation before executing a critical step (like sending an email or deleting a file)?
• Modifying State: We'll see how to do more than just append messages. We can update, delete, or transform data within our state as the agent works.
• Subgraphs: For truly complex tasks, we can build graphs-within-graphs, allowing our agent to delegate complex sub-missions to specialized "mini-agents."

Stay tuned. The world of agentic AI is vast, and we've only just scratched the surface.
